axle:multi axle
tire :optional
transport ability:30-100 ton
Turning :hydraulic turning
type:hydraulic control lifting
Wind tower transport semi-trailer | wind blade tower trailer | hydraulic control wind tower semi-trailer
Description:

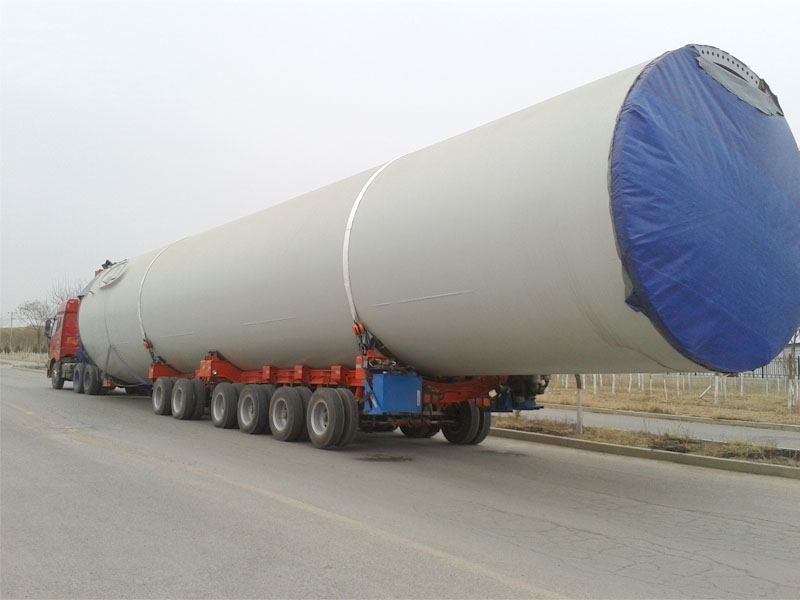

The wind tower transport semi-trailer is usually used together with the wind turbine rotor transport trailer which is used for wind energy equipment transportation. Because of the bad road transportation condition, the wind tower transport semi-trailer normally comes with different types. The picture above shows a kind of trailer for wind tower transport.
A wind tower is usually used in the high mountains or somewhere else which is usually comes with powerful winds out of the city. In order to meet the different transport requirements, the wind blade trailer with self-steering axles and the smaller but powerful tires to guarantee the power of the wind blade transporting safety.

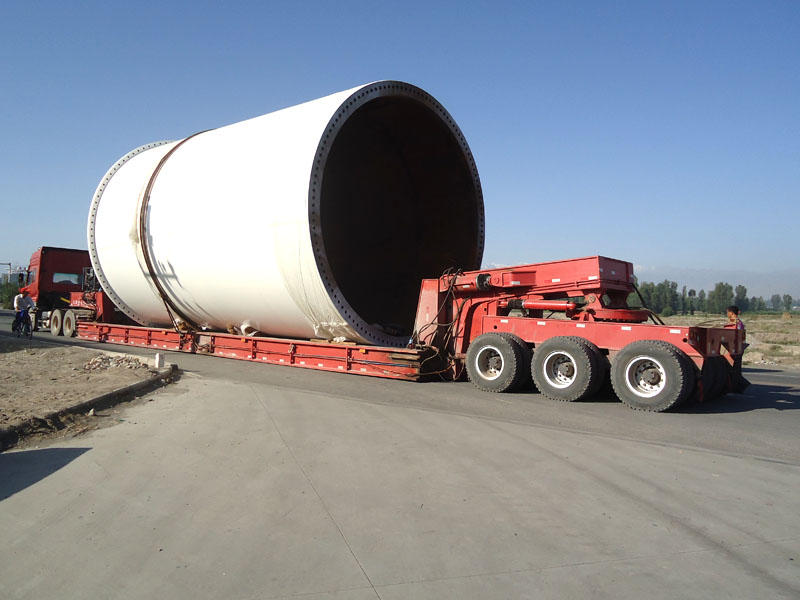

As is shown in the photo, the wind tower transport semi-trailer usually comes with two parts. The front part is used for fixing the wing tower and to provide tracking strength, And the rear part is mainly used for support and carrying the wind tower with multi axles.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | multi axles | |
| Tire model | optional | |
| Turning type | hydraulic control | |
| Tire No. | 12-48 pcs | |
| Breaking pads | 16-ton breaking pads | |
| Steering | self-steering | |
|
Trailer chassis |
Landing leg |
specially designed landing leg |
| floor plate thickness | without | |
| power station | yes | |
| electric input | 7 phrase | |
| lights | LED lights | |
| transporting ability | accordingly to the customer's requirement | |
| Kingpin | 2.0 or 3.5 inch | |
|
- |
- |
- |
| - | - | |
| - | - | |
| - | - | |
| - | - |
Shipping solution:
By container. The wind tower transport semi-trailer cannot be transported by container.
By breakbulk cargo ships. All size of the wind tower transport semi-trailer is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the wind tower transport semi-trailer is able to be transported by bulk cargo ships.
