axle:13 - 16 ton axle
tire :12R22.5
tanker thickness:4 mm
suspension :10 pcs leaf spring
kingpin :2.0 or 3.5 inch
Cement trailer | cement tanker | cement truck trailer | cement transport use truck trailer | tanker trailer
Description:

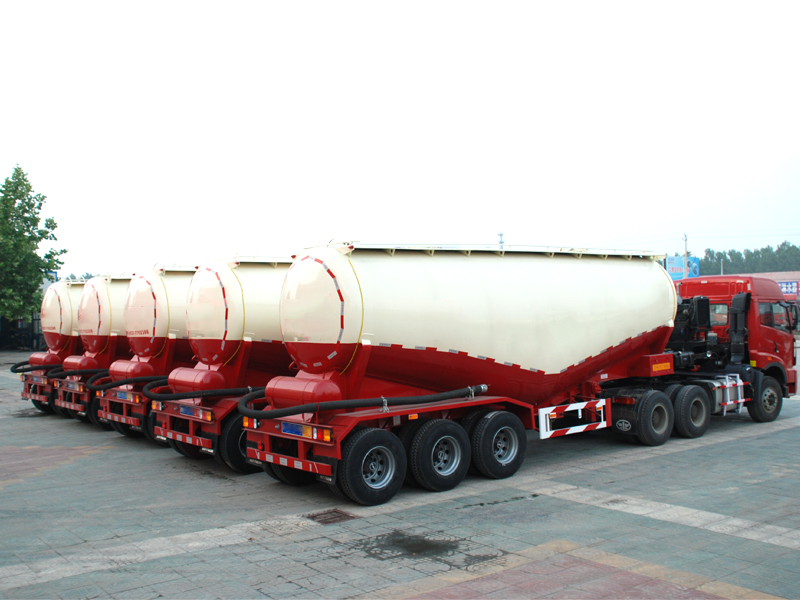

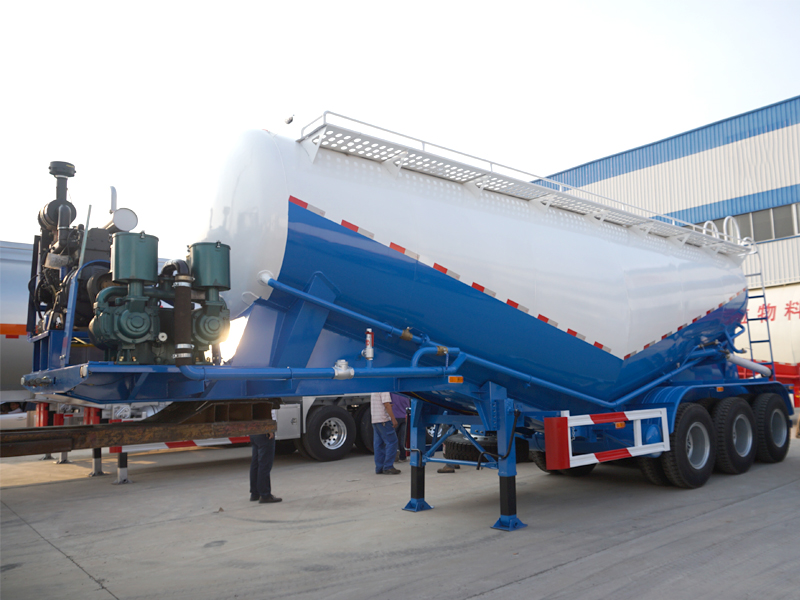

Cement bulk tanker is used for cement transport. The bulk cement tanker trailer is specially designed according to the bulk cement characteristics. The pipes and the discharge spares are specially designed. If the customers need the tanker trailer to transport other materials, we need to change the design.
There are some customers who talk with us for the tires because the cement trailer needs long distances transportation with bad road conditions. So for the bulk cement tanker trailer, we will use the reinforced 12R22.5 tires. the model of 12.00R20 and 13R22.5 for optional. In order to meet the different transporting conditions, we will choose a different type of tires for our tanker trailers.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Landing leg |
28-ton landing leg |
| diesel engine | 4012 | |
| air compressor | 14 CBM air compressor | |
| electric input | 7 phrase | |
| lights | LED lights | |
| discharge pipe | yes | |
| Kingpin | 2.0 or 3.5 inch | |
|
tanker info |
tanker thickness |
3-5 mm |
| tanker plate thickness | 4-6 mm | |
| air pipe | 10 pcs | |
| discharge valve | yes | |
| manhole | 1 |
Shipping solution:
By container. The standard size of the cement transport semi-trailer is able to be transported by a flat rack container.
By breakbulk cargo ships. All size of bulk cement semi-trailer is able to be transported by bulk cargo ships.
By RO-RO ships. All size of stake bulk cement tanker semi trailer is able to be transported by bulk cargo ships.
