axle:13-20 ton axle
tire :12R22.5
floor plate :5 mm
suspension :10 pcs leaf spring
kingpin :2.0 or 3.5 inch
Lowboy semi-trailer | low bed semi-truck trailer | heavy-duty equipment transport trailer | heavy duty low loader semi-trailer
Description:

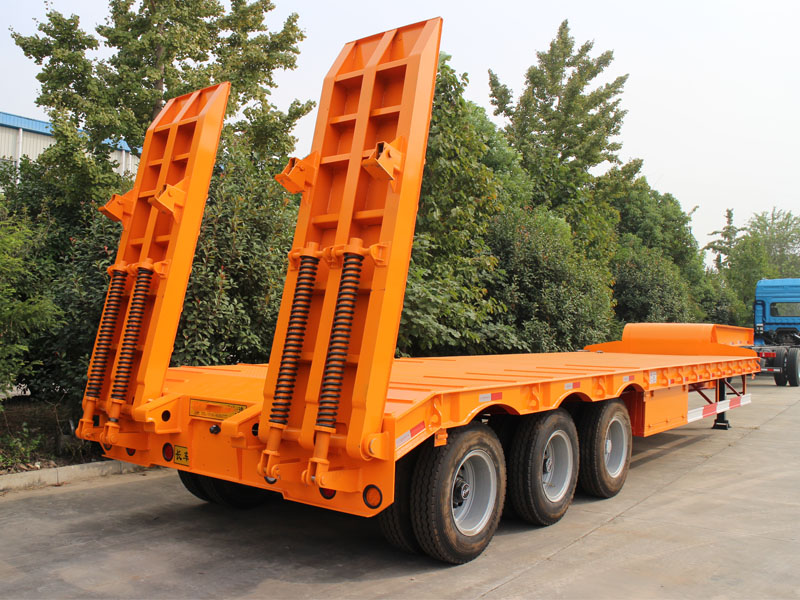

Heavy-duty low bed trailer is one type of semi-trailers for the road-transportation. The main advantage is that this low bed trailer has a bigger payload and transportation ability. With a stronger body chassis and the walk system, the low bed trailer is able to meet most of the cargo's transportation requirements. The lower height of the working plate form, while transporting the heavy-duty machines, it will be more stable and safe both for the machines and the drivers.
Some customers told me that they need a larger payload for transporting different goods. So we arranged a team especially working on designing the low bed trailers. Such as the main beams, the thickness of the top plate, middle plate, and the bottom plate is the main factor for the ability of the low bed trailers. So we give different options for different transport usage.
Specification:
|
walking system |
Axles |
13-20 ton axles |
| Axles No. | 3-6 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12-24 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
400-500 mm |
| Main beam thickness | 16/10/18 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 5 mm | |
| Floor plate type | checked steel | |
| side beams | #16 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Tanker or box |
- |
- |
| - | - | |
| - | - | |
| - | - | |
| - | - |
Shipping solution:
By container. The normal size of the low loader semi-trailer is not able to charge into the containers, but for special requirements, of the customers, we will make the special design to meet the shipping requirement.
By breakbulk cargo ships. The normal size and oversize low bed trailer, all of which are able to be transport by the breakbulk cargo ships.
By RO-RO ships. All sizes of the low bed trailers are able to be shipping by RORO ships.
