Low bed trailer | low bed semi-trailer | low loader trailer | low loader trailer
Description:

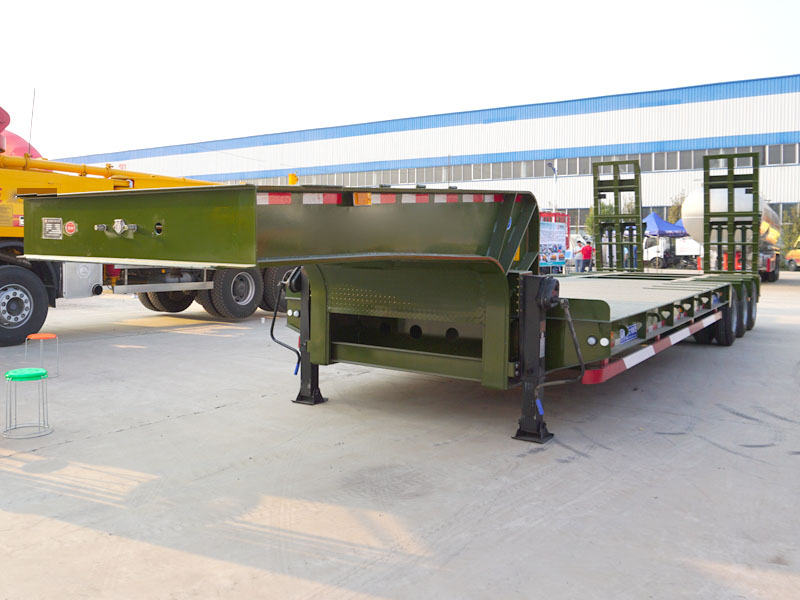

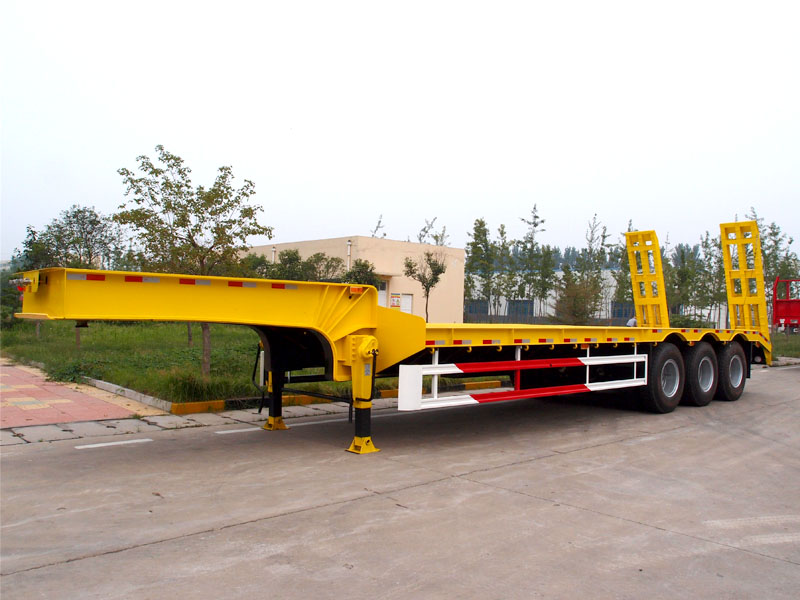

The low bed trailer is designed for heavy equipment or machinery transportation.
The rear ladder gives the solution for the machines like the excavator clamp up to the semi-trailer without help.
The axles that we usually used for this low loader semi-trailer is 13-20 ton axles. The different kind of axle depends on the payload that the customers required. For special use low bed trailers, we will design it according to the customer's transport requirement.
With a bigger payload of the low bed trailer, we will choose more axles like 4 or 5 axles for the special usage. And if there are restrictions on the axle payload in the customer's country, we will change the tonnage of the axles that we used for the low bed trailer.
Specification:
|
walking system |
Axles |
13-20 ton axles |
| Axles No. | 3-6 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12-24 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
400-500 mm |
| Main beam thickness | 16/10/18 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 5 mm | |
| Floor plate type | checked steel | |
| side beams | #16 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Tanker or box |
- |
- |
| - | - | |
| - | - | |
| - | - | |
| - | - |
Shipping solution:
By container. The normal size of the low loader semi-trailer is not able to charge into the containers, but for special requirements, of the customers, we will make the special design to meet the shipping requirement.
By breakbulk cargo ships. The normal size and oversize low bed trailer, all of which are able to be transport by the breakbulk cargo ships.
By RO-RO ships. All sizes of the low bed trailer are able to be shipping by RORO ships.
