axle:13 - 16 ton axle
tire :12R22.5
tanker thickness:4 mm
suspension :10 pcs leaf spring
kingpin :2.0 or 3.5 inch
Fuel tank truck semi-trailer | oil tanker | semi tanker truck oil tank semi-trailer | tank truck fuel tanker semi-trailer | steer trailer
Description:

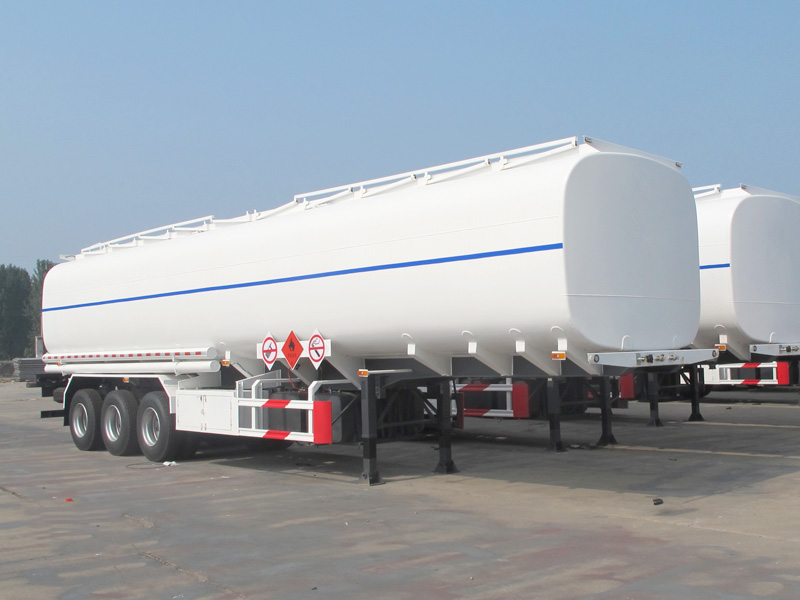

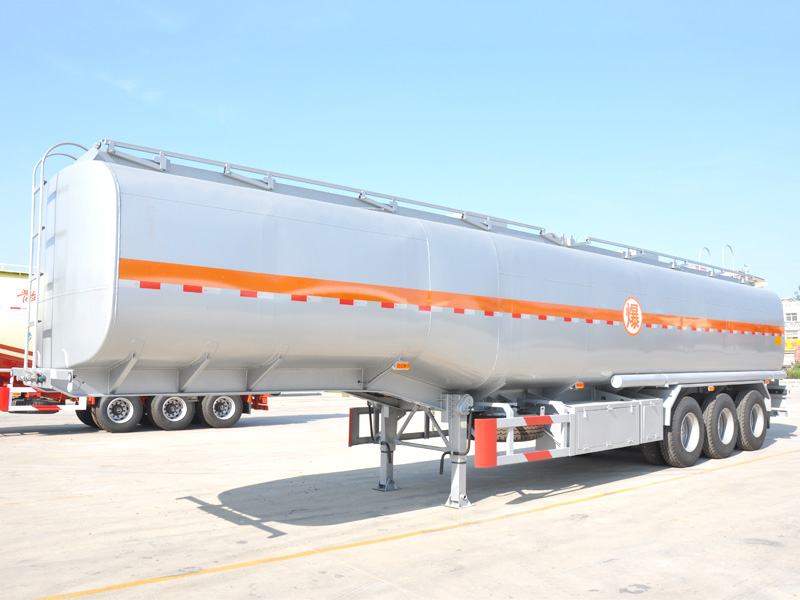

The carbon steel fuel tanker semi-trailer is the most popular type amount the customers. It has the same loading capacity as the aluminum tanker semi-trailer but it's cheaper than the aluminum tanker and the stainless steel tanker semi-trailer. The discharge valve numbers depend on the compartments that the customers need. Other parts like the manhole and the breath valves will just be the same as the normal types.
According to different countries, there are various types of tires for options. For example, in south-east Asia, normally the twin tires of 12R22.5 are the most suitable ones. And in Mid-east, most of the customers will choose the single tires for their options. In some special areas, because of the road conditions, the tires of 13R22.5 for their option.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Landing leg |
28-ton landing leg |
| diesel engine | 4012 | |
| air compressor | 14 CBM air compressor | |
| electric input | 7 phrase | |
| lights | LED lights | |
| discharge pipe | yes | |
| Kingpin | 2.0 or 3.5 inch | |
|
tanker info |
tanker thickness |
3-5 mm |
| tanker plate thickness | 4-6 mm | |
| breath valve | yes | |
| discharge valve | yes | |
| manhole | accordingly |
Shipping solution:
By container. The standard size of the oil transport semi-trailer is able to be transported by a flat rack container.
By breakbulk cargo ships. All size of the oil transport semi-trailer is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the fuel tanker semi-trailer is able to be transported by bulk cargo ships.
