axle:13 ton axle
tire :12R22.5
floor plate :3 mm
suspension :10 pcs leaf spring
kingpin :2.0 or 3.5 inch
40 feet flatbed trailer | 20 feet flatbed trailer | container flatbed trailer | 40-ton flatbed trailer
Description:

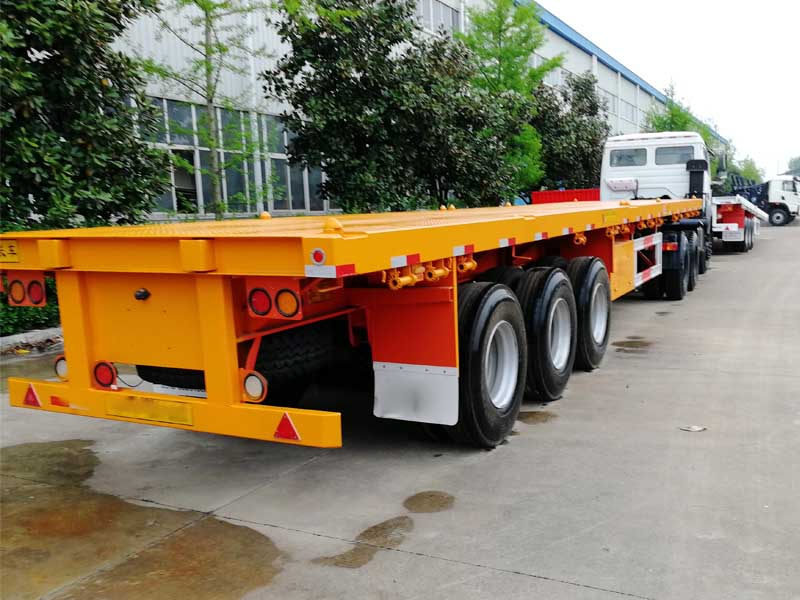

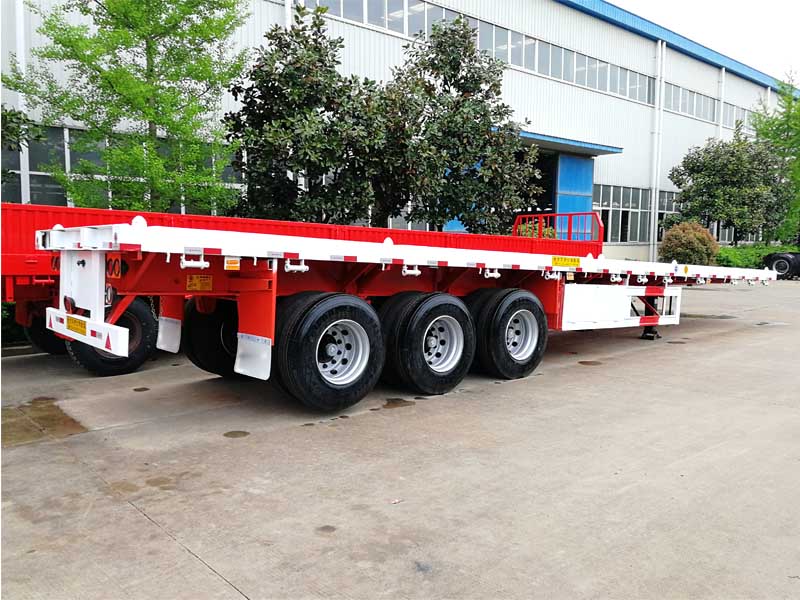

40 feet container trailer belongs to the special trailer which is used for container transport and breakbulk cargo transportation. Different kind size of the containers requires the different semi-trailers for the transporting.
In order to guarantee the quality of our container truck trailer. The axles we have fixed brands of axles. The standard type of the container trailers, we usually chose the 13-ton axles for our option, 3 axles with the wheelbase of 1310mm makes the semi-trailers in a good performance.
The tracking ability is confirmed on the basis of the kingpin of the container transport trailer. We have two different kinds of kingpin for the option. The 2.5inch of the kingpin with the model of No.50 is the international standard kingpin for the tractor and the semi-trailer. And another one with the 3.0 inch with the model of No.90 is a king of kingpin for the heavily loaded trailer. We will choose suitable ones in order to make our semi-trailers in better performance.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
500 mm |
| Main beam thickness | 14/8/16 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 3 mm | |
| Floor plate type | checked steel | |
| side beams | #10 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Tanker or box |
- |
- |
| - | - | |
| - | - | |
| - | - | |
| - | - |
Shipping solution:
By container. 2 sets of standard container trailers are able to charge into one 45 high cube container. If the design with rear cut, 2 sets of container trailers are able to charge into one 40 high cube containers.
By breakbulk cargo ships. The container trailers with all sizes are able to transport by breakbulk cargo ships.
By RO-RO ships. All size of container trailers is able to be transported by bulk cargo ships.
