High bed trailer | goose neck trailer for hauling shipping container | 20 ft shipping container trailer for sale | 40' goose neck container trailer
High bed trailer | goose neck trailer for hauling shipping container | 20 ft shipping container trailer for sale | 40' goose neck container trailer

High bed trailer | goose neck trailer for hauling shipping container | 20 ft shipping container trailer for sale | 40' goose neck container trailer

Product Tags :
Product Attributes :

axle:13 ton axle
tire:12R22.5
floor plate: 3 mm
​suspension:10 pcs leaf spring
​kingpin:2.0 or 3.5 inch

Product Description

High bed trailer | 40 feet flatbed trailer | 20 feet flatbed trailer | container flatbed trailer | 40-ton flatbed trailer





Description:

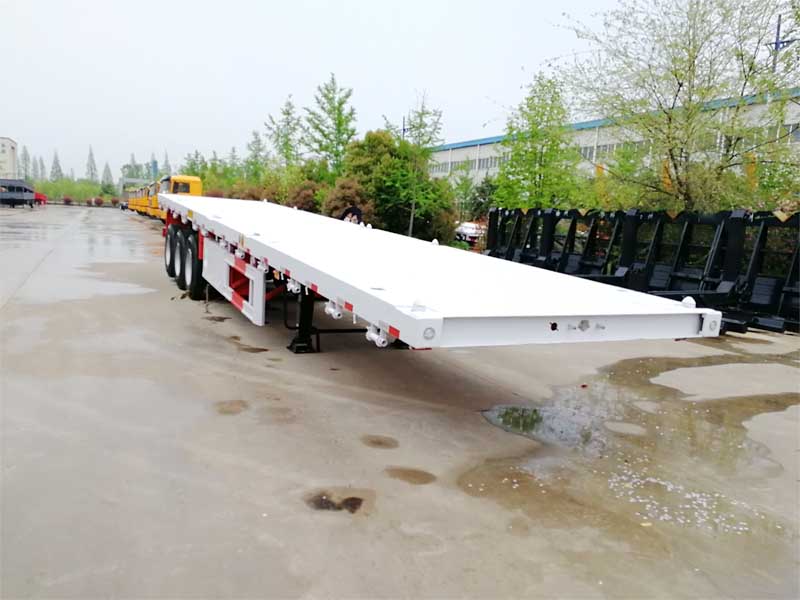

The 40' or 20' container transport semi-trailer is widely used in container long-distance transporting or content delivery. The container transport container trailer is a kind of standard kind of container transporting solution.

40' container transporting semi-trailer is used for the 40 ft container or 20 ft container transporting. With 12 sets of a twist lock, the transportation solutions will be different. When transporting 40 ft containers, with front two and rear two sets of a twist lock, the container is safe for transportation. Because there are 12 sets of container lock. The 40 ft container transporting semi-trailer is able to meet the different requirements for transporting 2 sets of containers and 1 set of the container too.

The 20 ft container trailer is various, the drawbar type flatbed trailer and normal type of container transport trailer with the kingpin. All these two types of container trailers are only used for 20 ft container transporting.



Specification:











walking system

Axles

13-ton axles
Axles No. 3 axles
Tire model 12R22.5
Leaf spring No. 10 pcs
Tire No. 12 pcs
Breaking pads 13-ton breaking pads
Suspension strengthen type











Trailer chassis

Main beam height

500 mm
Main beam thickness 14/8/16 mm
Main beam material Q235 B
Floor plate thickness 3 mm
Floor plate type checked steel
side beams #10
Kingpin 2.0 or 3.5 inch







Tanker or box

-

-
- -
- -
- -
- -



Shipping solution:



  1. By container. 2 sets of standard container trailers are able to charge into one 45 high cube container. If the design with rear cut, 2 sets of container trailers are able to charge into one 40 high cube containers.
  2. By breakbulk cargo ships. The container trailers with all sizes are able to transport by breakbulk cargo ships.
  3. By RO-RO ships. All size of container trailers is able to be transported by bulk cargo ships.
