axle:13 - 16 ton axle
tire :12R22.5
floor plate :3 mm
suspension :10 pcs leaf spring
kingpin :2.0 or 3.5 inch
Fence cargo semi-trailer | stake cargo semi-trailer | stake cargo trailer with fence | livestock transport semi-trailer
Description:

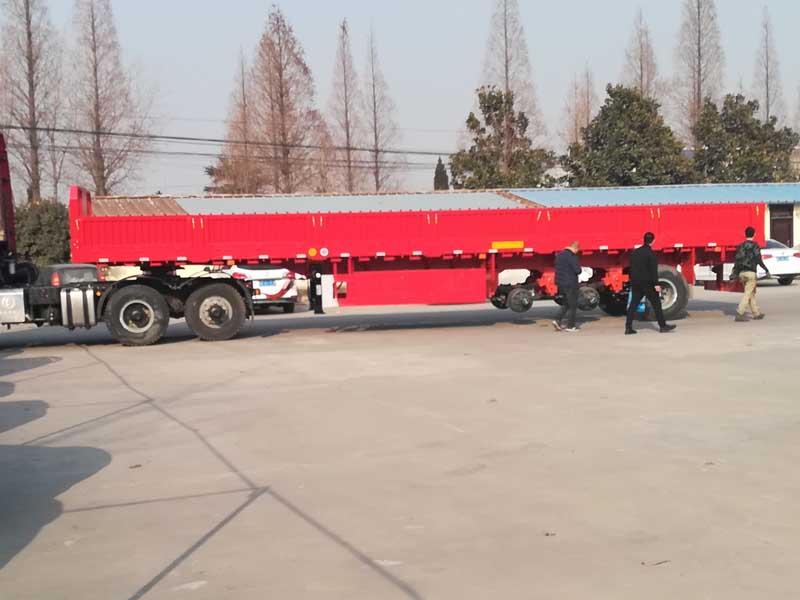

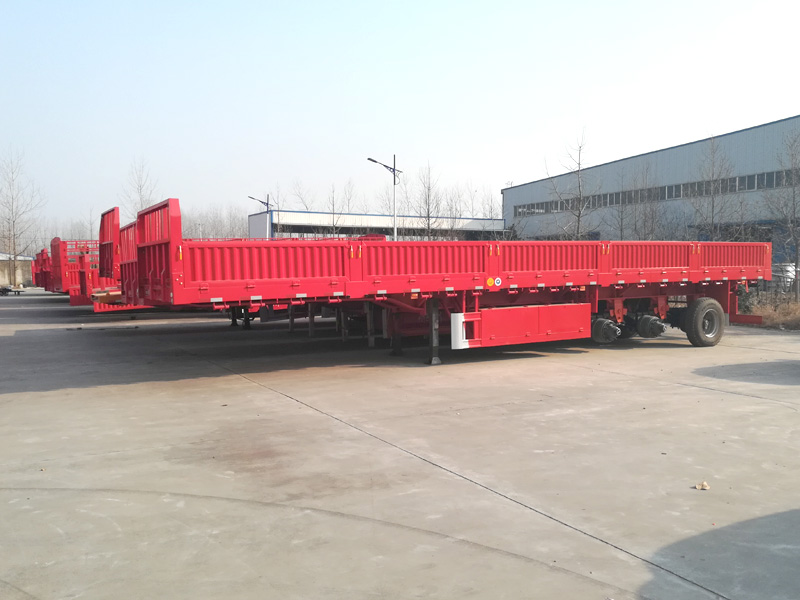

The stake cargo semi-trailer with the sidewall is a deformed model of the container transport trailer. It's widely used for breakbulk cargo transportation. The sidewall is removable when transporting the containers, just remove the sidewall for container transport. When transporting the bulk cargo, the rear door is able to be opened.
The sidewall height is different between 600 mm to 1500mm. The height of the sidewall just depends on the customer's requirement and the goods that we will transport.
The axles and the tires are the same as the container transport trailers. For the standard.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
500 mm |
| Main beam thickness | 14/8/16 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 3 mm | |
| Floor plate type | checked steel | |
| side beams | #10 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Sidewall |
height |
12000-25000 mm |
| wall type | according to the customer's requirement | |
| open | from the rear | |
| removable | yes | |
| block for rog | yes |
Shipping solution:
By container. 2 sets of container cargo trailer is able to charge into one 45 ft containers.
By breakbulk cargo ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
By RO-RO ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
