Fence cargo semi-trailer | stake cargo semi-trailer | stake cargo trailer with fence | livestock transport semi-trailer
Description:

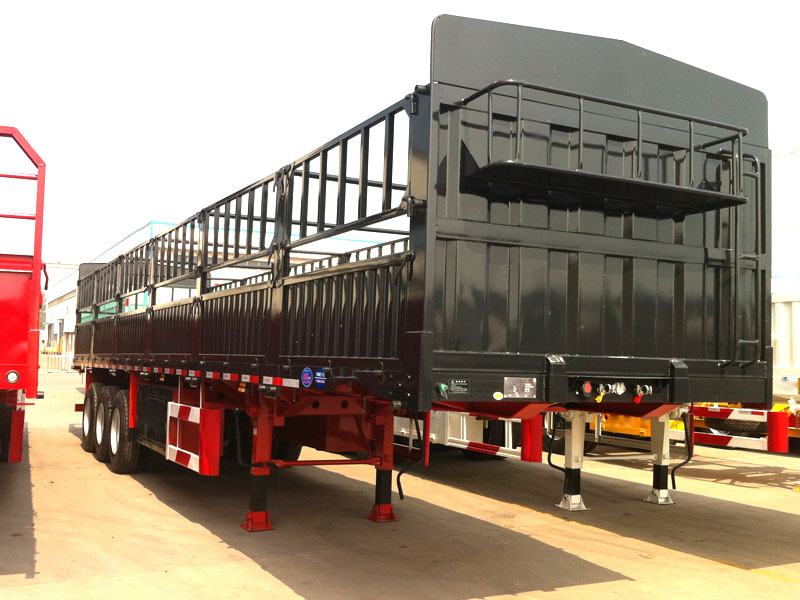

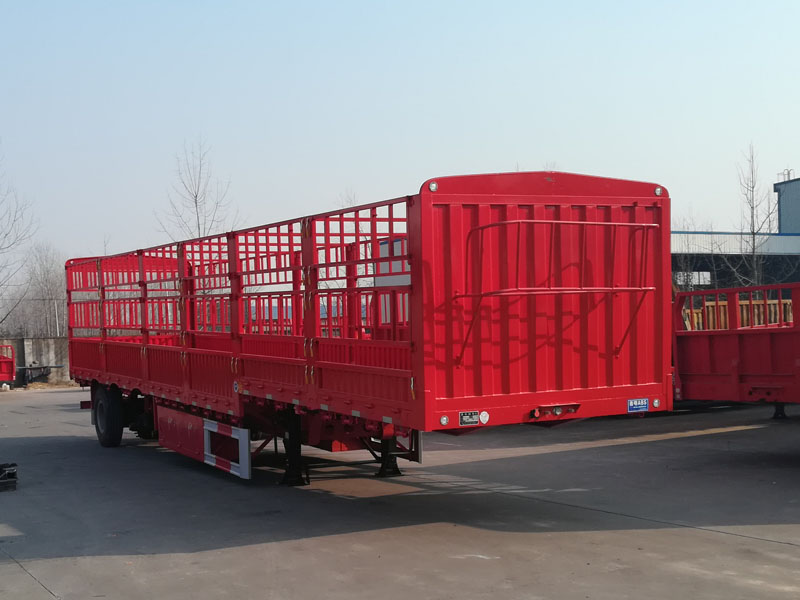

The high bed fence stake cargo semi-trailer is the deformed edition from the container transport semi-trailer. In order to transport the goods which are easy to fall, this type of high fence stake cargo trailer will be the best option.
High fence stake cargo semi-trailer is widely used for the fruit, jus, etc. transportation. These kinds of foods are usually in the pallet and which is not very heavy. This high fence is just suitable for the large cube meters but not very heavy.
The Landing leg for this high fence stake cargo trailer is the one with a 28-ton landing leg with signal speed. The 28-ton landing leg is able to support the semi-trailer while it's on way discharging, and the signal speed landing legs will guarantee where there they are, it's able to discharge in a horizontal.
All in all, we will design the semi-trailers according to the customer's requirements and produce the most suitable and convenient semi-trailer for the customers.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
500 mm |
| Main beam thickness | 14/8/16 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 3 mm | |
| Floor plate type | checked steel | |
| side beams | #10 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Sidewall |
height |
12000-25000 mm |
| wall type | according to the customer's requirement | |
| open | from the rear | |
| removable | yes | |
| block for rog | yes |
Shipping solution:
By container. 2 sets of container cargo trailer is able to charge into one 45 ft containers.
By breakbulk cargo ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
By RO-RO ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
