Box trailer | box cargo trailer | semi stake cargo box trailer | semi van trailer | semi-trailer with container box
Description:

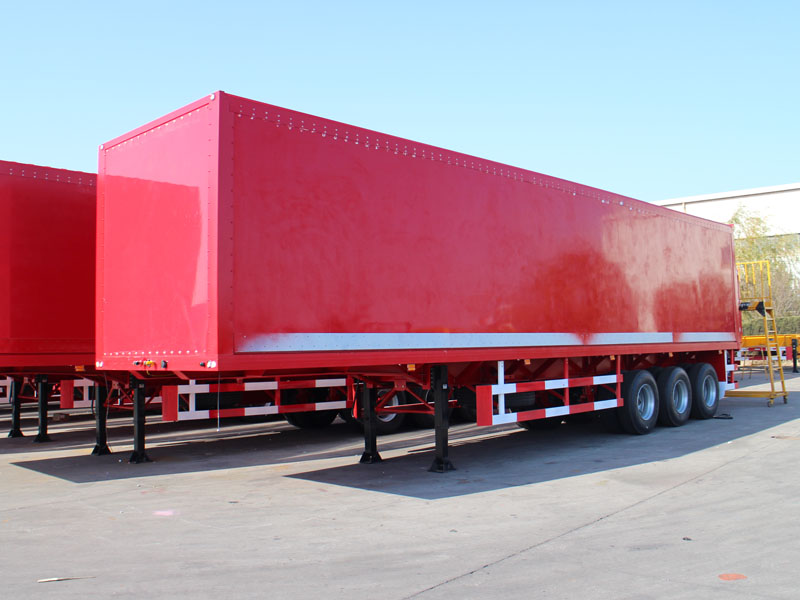

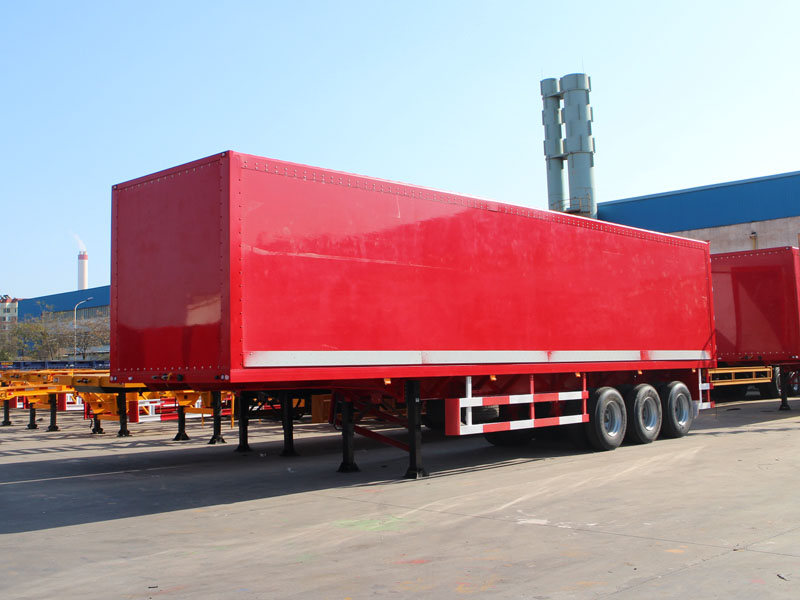

Stake cargo transport semi box van trailer is used for the bulk cargo transportation, because of the box on the top, no meter snowing or raining, it will prevent the product from damage. Such as salt transportation, food transportation, etc.
The box of the box van semi-trailer is designed according to the customer's transport requirement. The height of the box and the width of the semi-trailer will be designed accordingly. The axles that we used for the van box trailer is usually the 13-ton axles with 3 axles in total. The max payload of 3 axles is about 55-65 tons. And with a bigger payload, we will suggest bigger axles.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
500 mm |
| Main beam thickness | 14/8/16 mm | |
| Main beam material | Q235 B | |
| Floor plate thickness | 3 mm | |
| Floor plate type | checked steel | |
| side beams | #10 | |
| Kingpin | 2.0 or 3.5 inch | |
|
Sidewall |
height |
12000-25000 mm |
| wall type | according to the customer's requirement | |
| open | from the rear | |
| removable | yes | |
| block for rog | yes |
Shipping solution:
By container. 2 sets of container cargo trailer is able to charge into one 45 ft containers.
By breakbulk cargo ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
By RO-RO ships. All sizes of stake cargo trailers are able to be transported by bulk cargo ships.
