Dump trailer | dumper trailer | dump semi-trailer | dumper semi-trailer | dump semi-truck trailer
Description:
The dump semi-trailer is a type of special semi-trailer that shows us it's named. The dump truck trailer is made to be used for easy unloading goods like sands, stones, etc.
Dumper semi-trailers are widely used for its easy unloading advantages, they usually cooperate with wheel loaders. In such solutions, the cargos which need to be transported can be easily loaded and unloading.

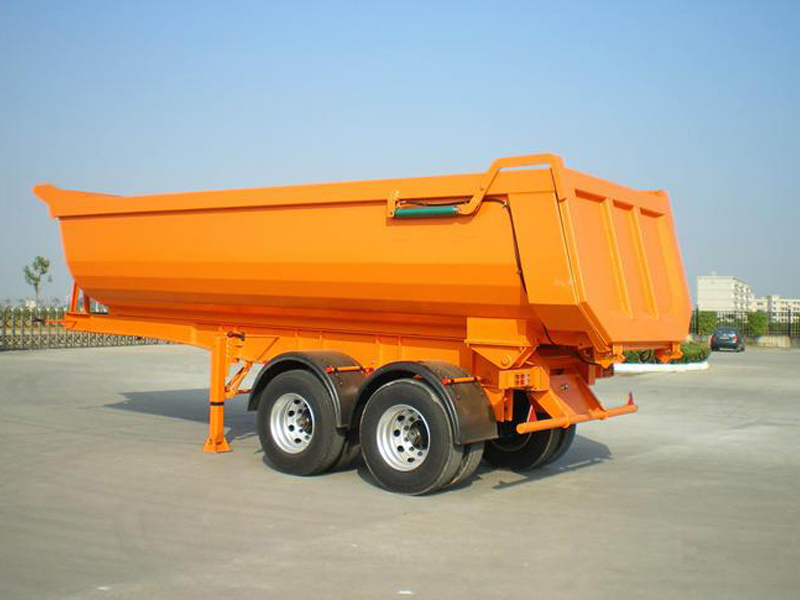

The type we show here is the end dump semi-truck trailer, it will discharge the good from the end of the semi-trailer. The rear door is auto-opened, while we discharge the goods, it doesn't the human, so it can protect people for safety.
Specification:
|
walking system |
Axles |
13-16ton axles |
| Axles No. | 2-5 axles | |
| Tire model | 12R22.5 | |
| Leaf spring No. | 10 pcs | |
| Tire No. | 8-20 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main beam height |
400-500 mm |
| Main beam thickness | 16/10/18 mm | |
| Main beam material | Q235 B | |
| cylinder | #196 | |
| discharge type | end dump | |
| vice beam | yes | |
| Kingpin | 2.0 or 3.5 inch | |
|
box info |
side plate |
4-8 mm |
| floor plate | 6-10 mm | |
| rear door | auto-opened | |
| control system | hydraulic controls | |
| turning | 2-4 pcs |
Shipping solution:
By container. When box and chassis separated, the smaller payload of the dump trailers is able to be charged into the containers.
By breakbulk cargo ships. All sizes of the dumper semi-trailers are able to be transported by bulk cargo ships.
By RO-RO ships. All size of the dump semi-trailers is able to be transported by RORO ships.
