Dumper truck | heavy duty dumper truck | heavy duty dump truck | 12 wheel dump truck | steer machinery
Description:

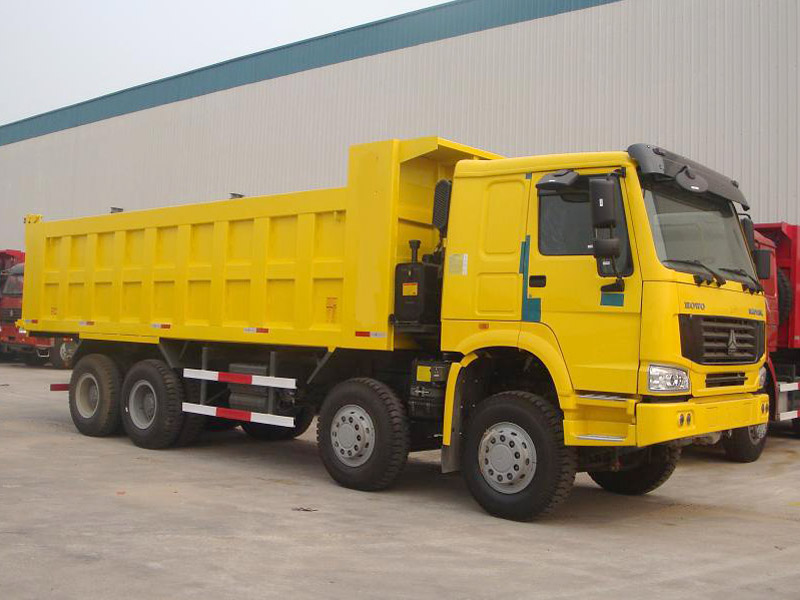

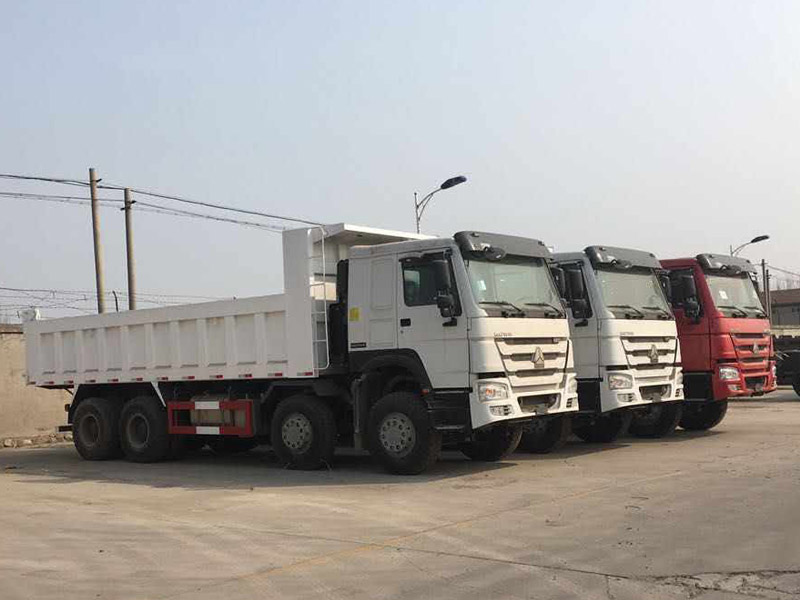

The heavy-duty dumper truck from Steer machinery is a product that is widely used in many areas such as stones transportation, mining transportation, sand transportation, fruit transportation, etc. The chassis of the dump truck from our company is the strengthen type in order to guarantee the transportability. The top plate of the chassis is made up of two pcs of the plate in total and partly 3 pcs on high strength steel.
The tire is the most concerning part by the customers, we will equip the tires model such as 12R22.5, 12.00R20, or 13R22.5 accordingly to the customer's requirement. The brand of the tires that we usually use is a famous brand such as ling long brand or triangle brand tires for our dump trucks in order to meet the different road conditions especially the bad the road conditions.
In order to meet the different goods that will be transported by customers, The thickness of the box will be different, for stones transportation, the sidewall of the box thickness will be 6 mm with the bottom floor of 8 mm.
Specification:
|
walking system |
Axles |
ST16+HF9 |
| Axles No. |
3-4 axles |
|
| Tire model | 12R22.5 | |
| Tire number | 1012 pcs | |
| driven axles | rear 2 axles | |
| Breaking pads | 16-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main Beam |
Edition V |
| Main beam type | strengthen type | |
| cab | Howo new cab | |
| cylinder | hydraulic controls | |
| discharge type | end dump | |
| vice beam | yes | |
| sleeper | 1 sleeper | |
|
box info |
side plate |
4-8 mm |
| floor plate | 6-10 mm | |
| rear door | auto-opened | |
| control system | hydraulic controls | |
| turning | 2-4 pcs |
Shipping solution:
By container. The dump truck is not able to be charged into the containers, but it's able to be transported by the FR container.
By breakbulk cargo ships. All size of the dump truck is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the dump truck is able to be transported by RORO ships.
