Description:

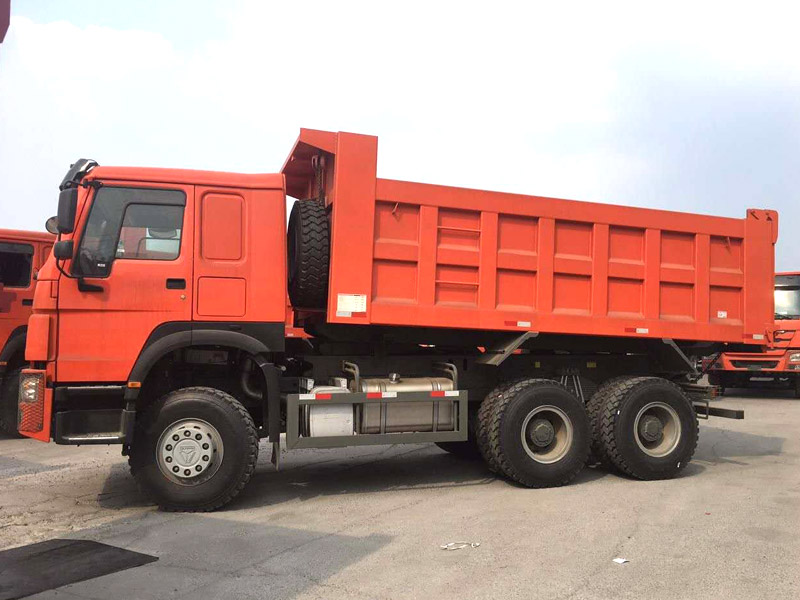

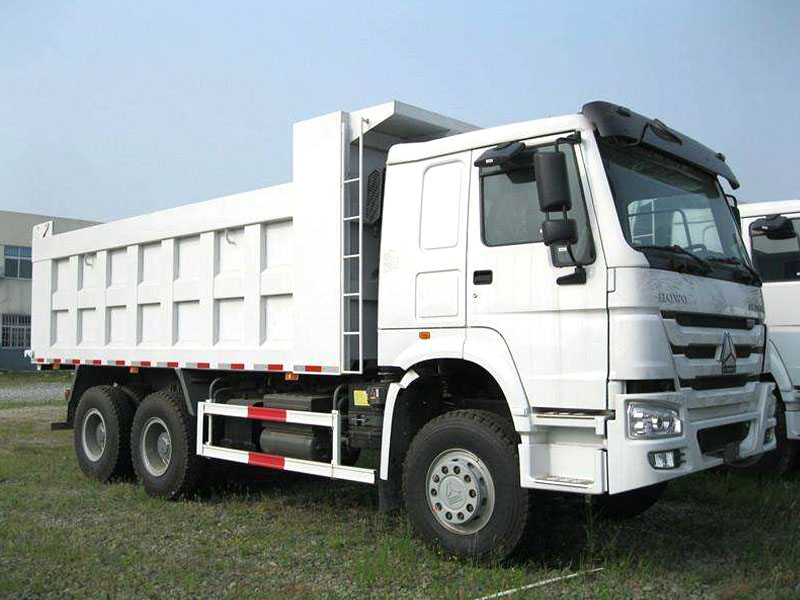

Heavy-duty dump truck from Shandong steer machinery co., Ltd is a product from Sino truck. The engine of the dump truck comes with different horsepower according to the payload that the customers required and the material that the customer will transport.
Normally the engine comes with the horsepower of 336 hp, 371 hp, and 420 hp.
The different engines provide different tracking ability for road transportation. The lifting systems that our truck used are middle lifting rear dump type.
The box of the 10 wheels dump truck from our company comes with the payload of 25 CBM approximately, about 50 tons of the transportation ability for transporting the stones or sands, etc. In order to meet the different goods that will be transported by customers, The thickness of the box will be different, for stones transportation, the sidewall of the box thickness will be 6 mm with the bottom floor of 8 mm.
Specification:
|
walking system |
Axles |
ST16+HF9 |
| Axles No. |
3 axles |
|
| Tire model | 12R22.5 | |
| Tire number | 10 pcs | |
| driven axles | rear 2 axles | |
| Breaking pads | 16-ton breaking pads | |
| Suspension | strengthen type | |
|
Trailer chassis |
Main Beam |
Edition V |
| Main beam type | strengthen type | |
| cab | Howo new cab | |
| cylinder | hydraulic controls | |
| discharge type | end dump | |
| vice beam | yes | |
| sleeper | 1 sleeper | |
|
box info |
side plate |
4-8 mm |
| floor plate | 6-10 mm | |
| rear door | auto-opened | |
| control system | hydraulic controls | |
| turning | 2-4 pcs |
Shipping solution:
By container. The dump truck is not able to be charged into the containers, but it's able to be transported by the FR container.
By breakbulk cargo ships. All size of the dump truck is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the dump truck is able to be transported by RORO ships.
