Mining truck | mining dump truck | rigid dump truck | heavy-duty construction dump truck | Steer machinery
Description:

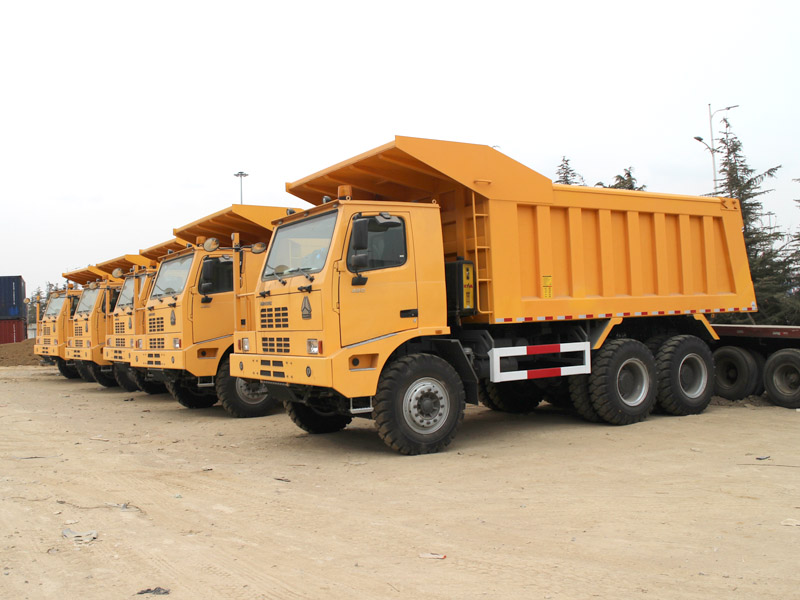

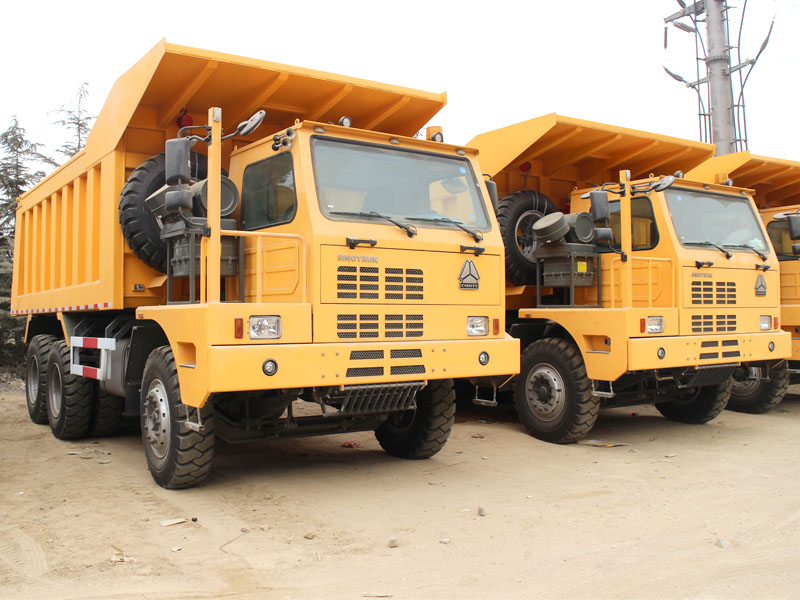

The heavy-duty ming dump truck from Sino truck provides us with a better solution for mining transportation. The box of the Sinotruk mining dump truck is much bigger than the normal dump trucks. The width of the dump box up to 6400mm, width up to 3300 mm. The Max height of the box is about 1800 mm. So the total payload of the mining dump truck is about 40 CBM 80 tons. Special enlarged dump boxes and the strengthening type of the sidewall and the floor plate give the mining dump truck a better performance on the off-road mining transportation.
The diesel engine that we adopted for the mining dump truck is 420 hp Euro II emission. The Axles for the mining dump truck is bigger than the normal axles than the ones that we used on the Howo dump truck. The rear two axles which mean the driven axles that we used are the 26-ton axles. The double 26 ton driven axles provide the mining dump truck better transportability.
Specification:
|
walking system |
Axles |
AC16+HF12 |
| Axles No. |
3 axles |
|
| Tire model | 14.00-25 36 PR | |
| Tire number | 10 pcs | |
| driven axles | rear 2 axles | |
| gearbox | HW21712 | |
| Gears | 10 forward and 2 reverse | |
|
Trailer chassis |
Ground clearance |
340 mm |
| Fuel tanker | 450 L | |
| cab | mining dump cab | |
| cylinder | hydraulic controls | |
| discharge type | end dump | |
| vice beam | yes | |
| sleeper | 1 sleeper | |
|
box info |
box length |
6400 mm |
| width | 3300 mm | |
| height | 1800 mm | |
| control system | hydraulic controls | |
| rear door | auto-opened |
Shipping solution:
By container. The dump truck is not able to be charged into the containers, but it's able to be transported by the FR container.
By breakbulk cargo ships. All size of the dump truck is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the dump truck is able to be transported by RORO ships.
